Pile Load Testing

Pile Load Testing Services in Jaipur — Up to 5000 Tons Capacity

Pile load testing is the most reliable method to verify that a pile foundation can safely carry the design load. BE GEO INFRA is one of India's leading pile load testing companies, with the capacity to conduct static vertical pile load tests up to 5000 tons and dynamic pile load tests using advanced PDI equipment. We serve infrastructure projects across roads, bridges, railways, power plants, and commercial construction.

With over 25 years of experience and ISO 9001:2015 certification, our pile testing team ensures every test is conducted with precision, safety, and full compliance with ASTM, IS, and IRC standards.

Why Is Pile Load Testing Important?

Pile foundations are used when the surface soil cannot carry the load of a structure. While pile design is based on theoretical calculations, field conditions often differ from assumptions. Pile load testing bridges this gap by providing actual measured data on pile capacity, settlement behaviour, and structural integrity.

Without proper pile load testing, engineers risk over- or under-designing foundations — both of which have serious consequences. Under-designed piles can fail catastrophically; over-designed piles waste material and increase project cost.

Types of Pile Load Tests We Offer

Static Vertical Pile Load Test

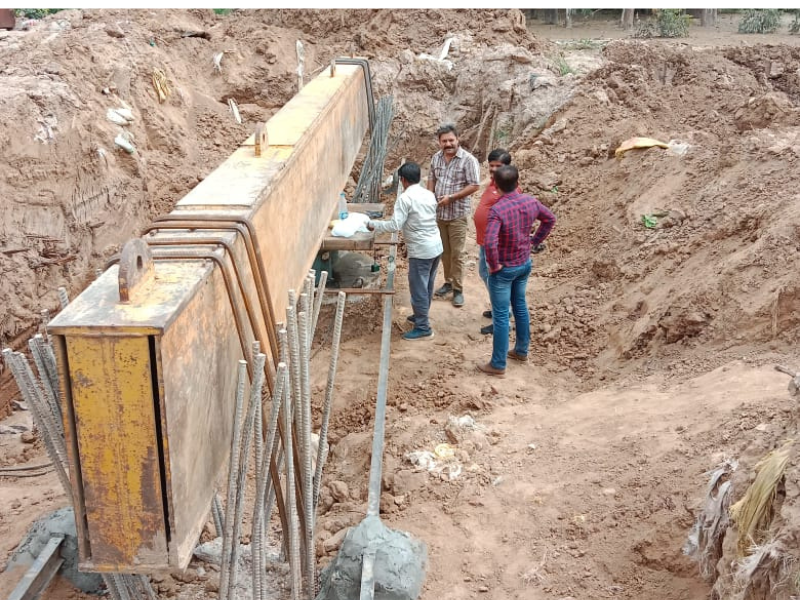

The most direct measure of a pile's load-bearing capacity. A reaction system is set up using anchor piles or kentledge, and load is applied incrementally while measuring settlement. We conduct this test up to 5000 tons using reaction anchor systems.

Bi-Directional Pile Load Test (O-Cell / Osterberg Cell)

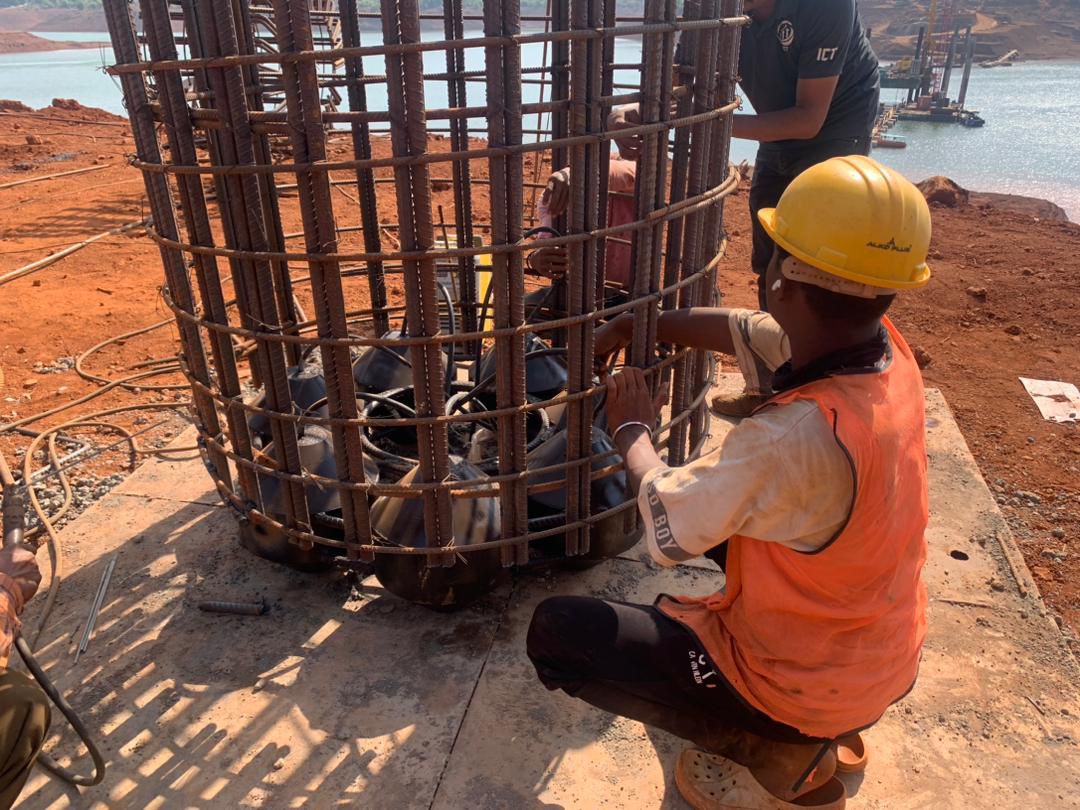

A modern alternative to conventional static testing, especially for large-diameter or deep piles. An O-Cell device is embedded in the pile during casting and activated hydraulically after curing. This allows testing up to 10,000 tons without a conventional reaction system.

Cyclic Pile Load Test

Used to evaluate pile behaviour under repeated loading conditions — critical for structures subjected to dynamic, seismic, or fatigue loads. Capacity up to 5000 tons.

Lateral Load Test

Evaluates pile resistance to horizontal forces such as wind loads, water currents, or seismic forces. Performed up to 500 tons.

Dynamic Pile Load Test (High-Strain Testing)

Uses Pile Driving Analyser (PDA) equipment from PDI, USA, conforming to ASTM D4945. A sensor-equipped hammer strike measures force and velocity, from which pile capacity, driving stresses, and integrity are assessed. Fast, economical, and highly reliable for driven piles.

Pull-Out Test (Tension Pile Test)

Evaluates the tensile resistance of piles — critical for structures subjected to uplift forces such as transmission towers, wind turbines, and basements. Capacity up to 500 tons.

Pile Integrity Test (PIT)

A low-strain non-destructive test to detect defects, cracks, voids, or reductions in cross-section within the pile shaft. Performed using PIT equipment from PDI, USA, conforming to ASTM D5882.

Cross-Hole Sonic Logging (CSL) Test

A high-sensitivity sonic test for bored cast-in-situ piles with pre-installed access tubes. Detects concrete defects, inclusions, and poor concrete zones within the pile body.

Our Testing Equipment

• PDI (Pile Dynamics Inc., USA) PDA and PIT equipment

• Static load frames capable of up to 5000-ton capacity

• Hydraulic jacks with precision pressure gauges

• Electronic load cells and dial gauges

• Data acquisition systems for real-time load-settlement recording

Standards We Follow

• ASTM D1143 — Axial Compressive Load Test

• ASTM D3966 — Axial Tensile Load Test

• ASTM D3689 — Individual Piles Under Axial Tension

• ASTM D4945 — High-Strain Dynamic Testing

• ASTM D5882 — Low-Strain Integrity Testing

• IS 2911 (Part 4) — Load Test on Piles

• IRC:78 — Standard Specifications for Road Bridges

Frequently Asked Questions (FAQ)

1. How many piles need to be tested in a project?

As per IS 2911, a minimum of 0.5–2% of working piles and 1–2 initial piles should be load tested. The exact number depends on project size, pile type, and client/consultant specifications.

2. What is the difference between initial and routine pile load tests?

Initial (or test) piles are loaded up to 2.5 times the safe load to establish ultimate capacity. Routine (acceptance) tests on working piles are loaded up to 1.5 times the safe load to confirm acceptability.

3. How long does a static pile load test take?

A standard maintained load test (MLT) takes 2–4 days per pile depending on the loading schedule. The quick load test (QMT) can be completed in one day.

4. Can pile load testing be done after construction begins?

Load testing should ideally be done before full-scale pile installation. However, routine acceptance tests can be done on working piles during or after installation.
